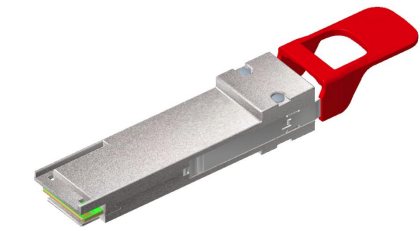

QSFP 40G/100G Loopback Module

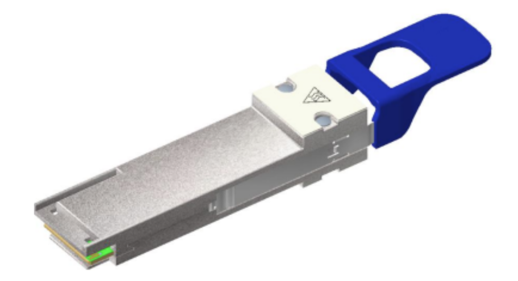

QSFP 40G/100G Loopback Module - Image 2

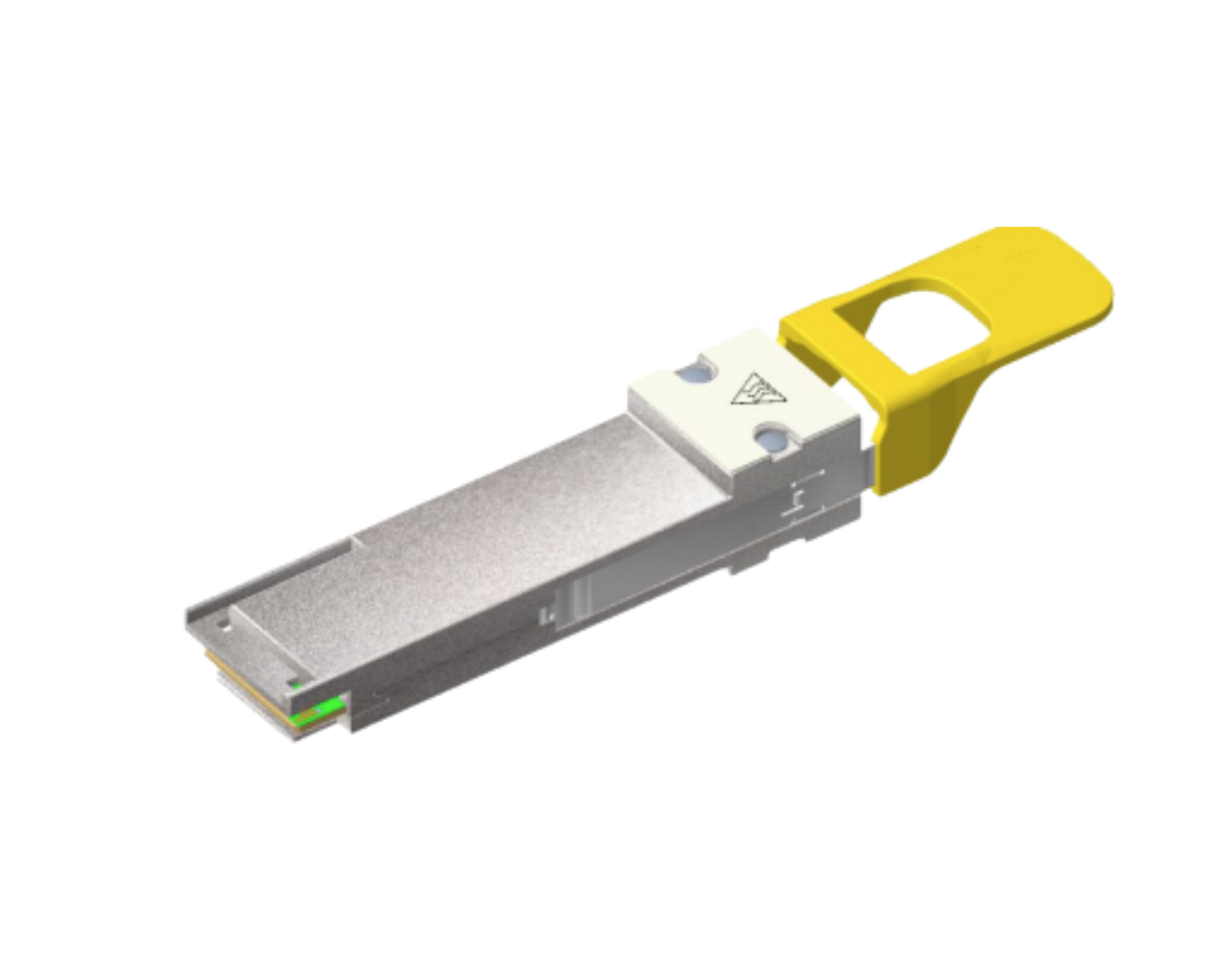

QSFP 40G/100G Loopback Module - Image 3

QSFP 40G/100G Loopback Module

Features:

  • Supports 4*10G/25G data rates
  • Industry’s highest rated 2000+ mating cycles
  • Programmable total power consumption up to 7W
  • Power emulation of SFF modules for ACC/AEC/SR/DR/FR/LR/ER/ZR/ZR+
  • 2-wire interface for integrated Digital Diagnostic Monitoring
  • Minimized channel loss for device port performance testing
  • Built-in high-precision temperature monitoring with calibration algorithm
  • Built-in surge current mitigation technology
  • Custom EEPROM and heating programming available
  • Multi-color LED indicator for module states monitoring
  • +3.3V power
  • Operating temperature: 0℃ to 70℃ C-temp or -40 to 85℃ I-Temp options
  • Hot-pluggable interface
  • RoHS compliant
  • Please contact us for a quote
SKU: R2-Q28-XXW-LB-X Categories: , , ,

Description

Designed and engineered to accommodate customers high usage 2000 cycles at -40°C to 85°C, the loopback module series are the most reliable products in the market to enable the quickest customers systems production and deployment. Software defined multiple power consumption may emulate the optical module power, and the embedded insertion loss characteristics emulates the real-world cabling for 40G/100G Ethernet/Infiniband/FC. The built-in surge current mitigation technology mitigates the DUT risks from being damaged. The broad operating temperature range accommodates the enterprise, datacom and telecom applications. The loopback module may be used for ports testing, field deployment testing and equipment troubleshooting.

Application:

  • QSFP based network device performance testing
  • Ethernet IEEE 802.3 (Gigabit, 10~100 Gigabit Ethernet)
  • InfiniBand, SDH, GbE, Fiber Channel

Ordering Information

Part Number Product Description
R2-Q28-0W-LB-1 100G/40G QSFP28/QSFP+LB, Passive, 0W, Straight-mapping, Red Pull-Tab, Compliance with SFF-8636 (Commercial Temp: 0℃~70℃)
R2-Q28-3.5W-LB-2 100G/40G QSFP28/QSFP+LB, Passive, 3.5W, Programmable power, Straight-mapping, Yellow Pull-Tab, Compliance with SFF-8636 (Commercial Temp: 0℃~70℃)
R2-Q28-7W-LB-3 100G/40G QSFP28/QSFP+LB, Passive, 7W, Programmable power, Straight-mapping, Blue Pull-Tab, Compliance with SFF-8636 (Commercial Temp: 0℃~70℃)
R2-Q28-0W-LB-4 100G/40G QSFP28/QSFP+LB, Passive, 0W, Straight-mapping, Red Pull-Tab, Compliance with SFF-8636 (Industrial Temp: -40℃~85℃)
R2-Q28-3.5W-LB-5 100G/40G QSFP28/QSFP+LB, Passive, 3.5W, Programmable power, Straight-mapping, Yellow Pull-Tab, Compliance with SFF-8636 (Industrial Temp: -40℃~85℃)
R2-Q28-7W-LB-6 100G/40G QSFP28/QSFP+LB, Passive, 7W, Programmable power, Straight-mapping, Blue Pull-Tab, Compliance with SFF-8636 (Industrial Temp: -40℃~85℃)
