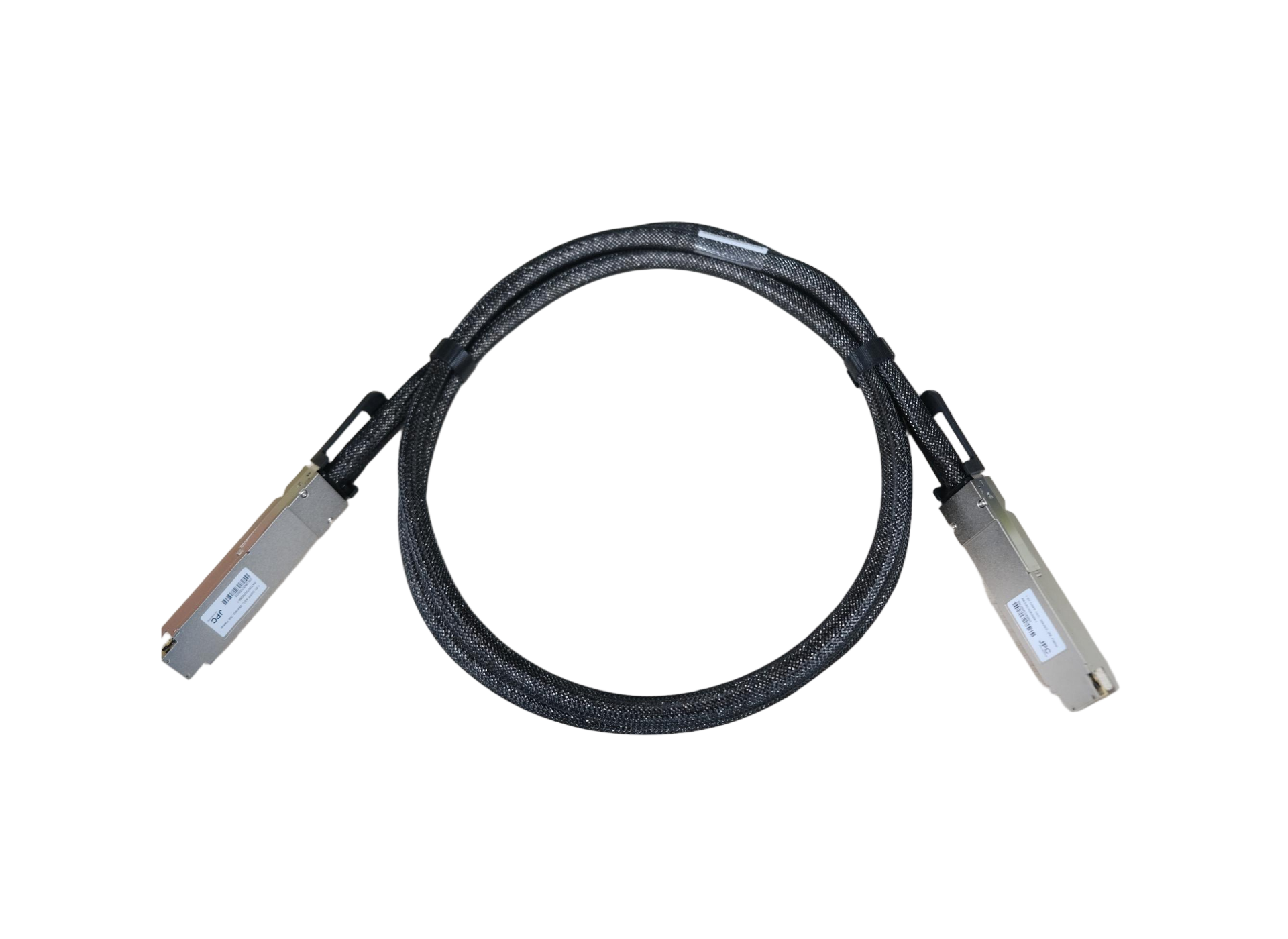

1.6T OSFP AEC - PAM4 (Broadcom)

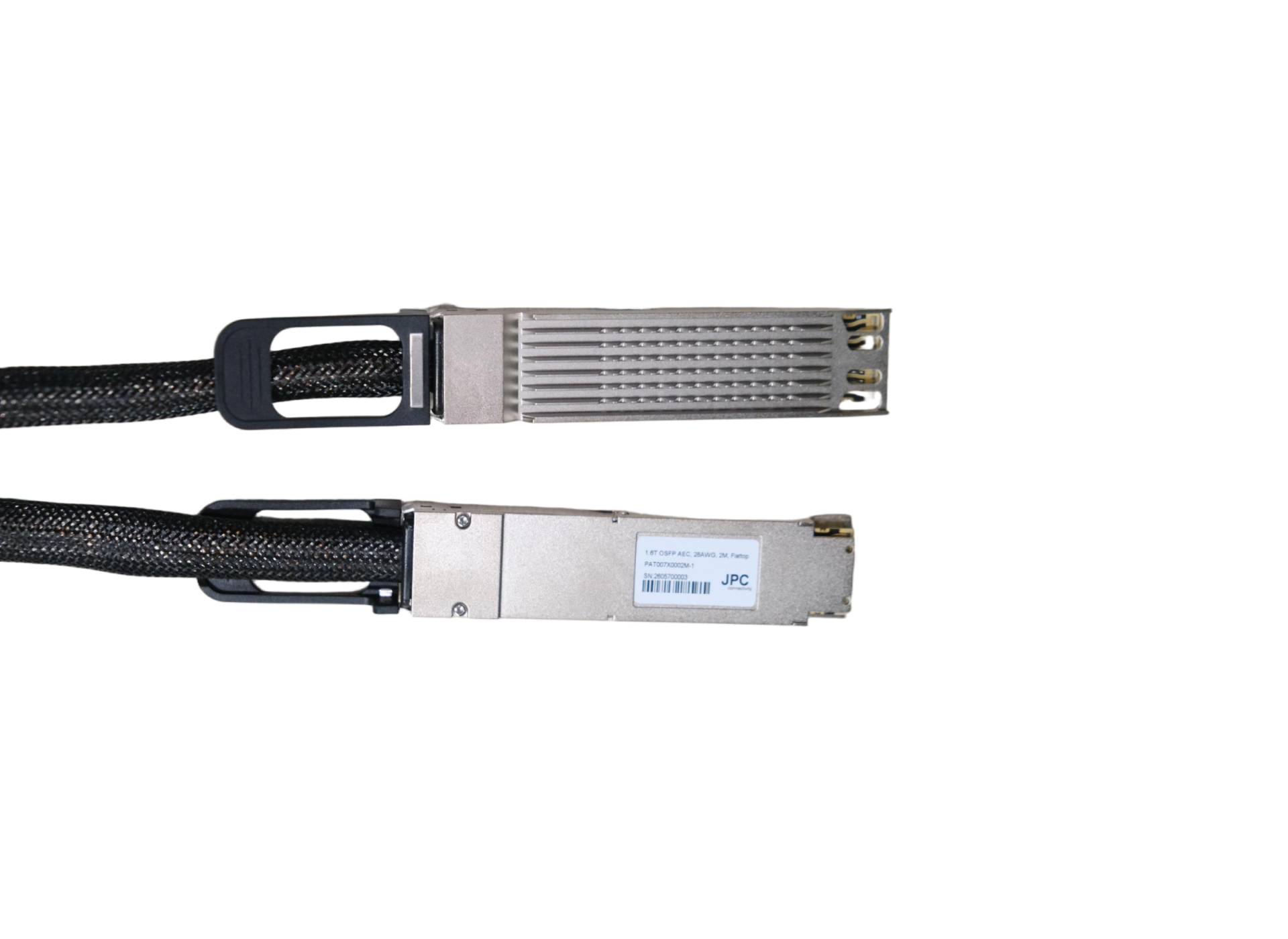

1.6T OSFP AEC - PAM4 (Broadcom) - Image 2

1.6T OSFP AEC – PAM4 (Broadcom)

Features:

  • Transmission rate up to 212.5 Gbps per channel
  • Single +3.3V power supply
  • Pre-FEC BER < 1e-8
  • Post-FEC BER < 1e-15
  • Copper link up to 4.5m
  • Supports integrated and removable heat sinks
  • Supports device programming by MCU with I2C
  • IEEE 802.3dj compliant
  • OSFP MSA Rev 2.0 compliant
  • CMIS 5.0 compliant
SKU: PAT007W0002M-1 Categories: , ,

Description

The 1.6T OSFP AEC features 16 differential copper pairs, providing 8 data transmission channels at speeds up to 200Gbps per channel via PAM4, and meets 1600G Ethernet and InfiniBand XDR requirements. Available in 28AWG and 30AWG, this 1.6T copper cable features low insertion loss and low crosstalk.

Ordering Information

Part Number Product Description
PAT007W0002M-1 1600G (1.6T) OSFP to OSFP AEC PAM4 28AWG 2m, Flat top
PAT007X0002M-1 1600G (1.6T) OSFP to OSFP AEC PAM4 28AWG 2m, Flat top
